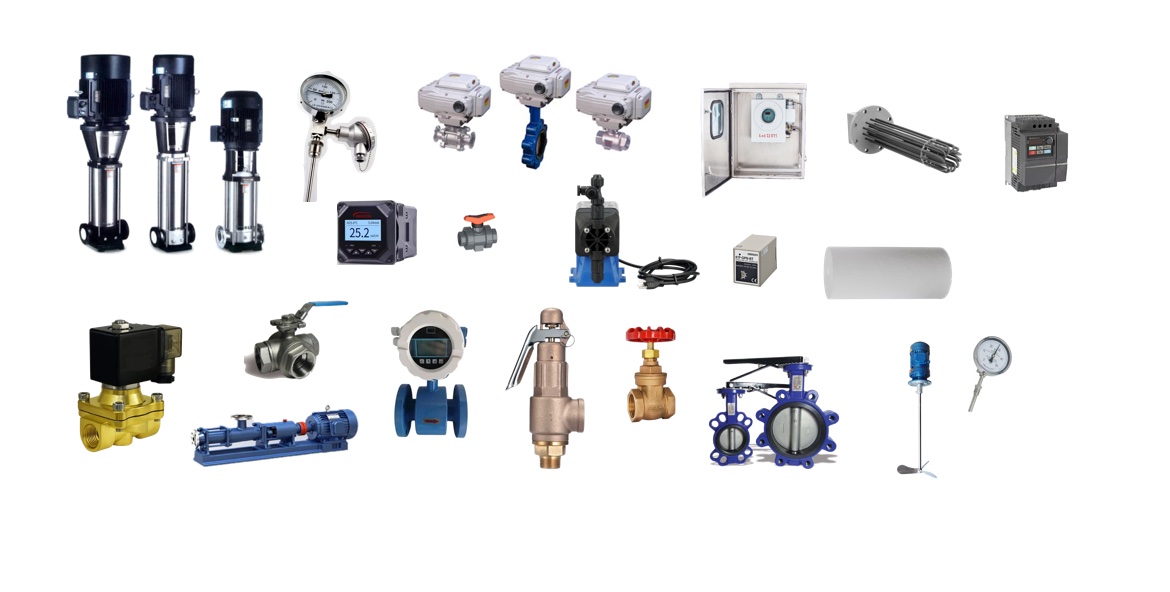

A. | Spares for Water Treatment Plant | | |
1. | Fire Jockey Pump with Electrical Motor DP-OWTP-023 Specification: Pump capacity: Q=18m³/h, H=80m (H2O) Model: XBD7.2/5-50GDL(2)) Motor: 415V, 7.5kW, Protection: IP 56 Model: Y2-132 S2-2 Shanghai Liancheng (Group) Co,. Ltd. China | Set | 1 |
2. | Drinking Water Pump (Big) with Electrical Motor DP-OWTP-024 Specification: Pump: Q=15 m³/h, H=50 m H2O Model: 50GDL18-15×3 Motor: 415 V, 4 KW Model: Y2-112M-2 Protection: IP56, Shanghai Liancheng (Group) Co,. Ltd. China | Set | 1 |
3. | Drinking Water Pump (Small) with Electrical Motor DP-OWTP-025 Specification: Pump: Q = 2 m³/h, H=50 mH2O Model: 25GDL2-12×5 Motor: 415 V, 1.5 KW, Model: Y90S-2 Shanghai Liancheng (Group) Co,. Ltd. China | Set | 1 |
4. | Vane type Compressor for root blower with Electrical Motor DP-OWTP-026 Specification: Pump: HZ40S, Q=0.5 m³/min, P=0.30 Kgf/cm², 90Kg Motor: 415 V, 0.75 KW. Y2-80M2-4 Beijing Deepblue Petroleum Technology Co., Ltd., China | Set | 1 |
5. | Dosing Pump DP-OWTP-027 Specification: 230VAC,1phase,50/60Hz, Nominal Output: 48 GPD, 7.6 LPH. Maxm pressure: 50psi, 3.3bar Model: LBC4SB-PTC3-XXX Pulsafeeder, China | No. | 1 |
6. | Stir mixer DP-OWTP-028 Specification: JB-300, 3-Phase, RPM-1500r/min Beijing Deepblue Petroleum Technology Co., Ltd., China | No. | 1 |
7. | Liquid level switch DP-OWTP-029 Specification: FCH21PD Capacity: 50W/SPST Voltage Max: 240Vac/200Vdc Current Max: 1A Beijing Deepblue Petroleum Technology Co., Ltd., China | No. | 1 |
8. | UPVC manual ball valve DP-OWTP-030 (Correct P/N) Specification: DN15 DP-OWTP-030 Beijing Deepblue Petroleum Technology Co., Ltd., China | No. | 1 |
9. | Actvated Carbon & Multimedia filter Backwash pump with ElectricalMotor DP-OWTP-065 Specification: Pump: Rated Flow=32m³/h, Flow Range: 16~40 m³/h, P=4kW, H=27m Model: CDMF32-2FSWSC Motor: 415 V, 4 KW Y2-112M-2 Nanfang Pump Industry Co,. Ltd. (CNP), China | No. | 1 |
10. | Stainless Steel Check Valve DP-OWTP-034 Specification: DN65 Beijing Deepblue Petroleum Technology Co., Ltd., China | No. | 1 |
11. | UPVC Manual Ball Valve DP-OWTP-030 Specification: DN15 Beijing Deepblue Petroleum Technology Co., Ltd., China | No. | 1 |
12. | Clean water pump DP-OWTP-066 Specification: Pump: Rated Flow: 10m³/h, Flow Range: 5~14 m³/h, H=45mH2O Model: CDMF10-5FSWSC Motor: 415 V, 2.2 KW. Y2-90L-2 Nanfang Pump Industry Co,. Ltd. (CNP), China | Nos. | 2 |
13. | Manual butterfly valve DP-OWTP-033 Specification: DN65 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos. | 2 |
14. | Manual butterfly valve DP-OWTP-036 Specification: DN50 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos. | 2 |
15. | Electrical butterfly valve DP-OWTP-037 Specification: Actuator Model: QS-05S Power Supply: 240VAC, 50Hz Torque: 50 N.m, Time: 30s Valve Specification: DN65 Actuator Manufacturer: Tianjin Tianertong Valve Actuator Co., Ltd., China | Nos. | 10 |
16. | Electrical butterfly valve DP-OWTP-038 Specification: Actuator Model: QS-05S Power Supply: 240VAC, 50Hz Torque: 50 N.m, Time: 30s Valve Specification: DN50, Actuator Manufacturer: Tianjin Tianertong Valve Actuator Co., Ltd., China | Nos. | 8 |
17. | Electrical butterfly valve DP-OWTP-039 Specification: Actuator Model: QS-05S Power Supply: 240VAC, 50Hz Torque: 50 N.m, Time: 30s Specification: DN40, Actuator Manufacturer: Tianjin Tianertong Valve Actuator Co., Ltd., China | Nos. | 5 |
18. | Electrical ball valve DP-OWTP-040 Specification: Actuator Model: QS-05S Power Supply: 240VAC, 50Hz Torque: 50 N.m, Time: 30s. Valve Specification: DN25, Actuator Manufacturer: Tianjin Tianertong Valve Actuator Co., Ltd., China | Nos. | 8 |
19. | Manual ball valve DP-OWTP-041 Specification: DN20 Beijing Deepblue Petroleum Technology Co., Ltd., China | No. | 1 |
20. | High Pressure lift pump DP-OWTP-067 Specification: Pump:Q= 4 m³/h, H=133m H2O Model: CDMF5-20FSWSC Motor: 415 V, 3 KW Y2-100L-2 Nanfang Pump Industry Co,. Ltd. (CNP) (Intergrated by Beijing Deepblue Petroleum Technology Co., Ltd., China) | Set | 1 |
21. | Manual butterfly valve DP-OWTP-035 Specification: DN32 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos. | 2 |
22. | Stainless steel check valve DP-OWTP-042 Specification: DN32 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos. | 2 |
23. | Electrical ball valve DP-OWTP-043 Specification: Actuator Model: QS-05S Power Supply: 240VAC, 50Hz Torque: 50 N.m, Time: 30s Valve Specification: DN32 Actuator Manufacturer: Tianjin Tianertong Valve Actuator Co., Ltd., China | Nos. | 10 |
24. | Manual ball valve DP-OWTP-044 Specification: DN15 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos. | 3 |
25. | Manual ball valve DP-OWTP-045 Specification: DN25 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 2 |
26. | Manual ball valve DP-OWTP-046 Specification: DN32 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
27. | Dosing Pump with accessories (Metering pump) DP-OWTP-068 Specification: 230VAC,1phase,50/60Hz, Nominal Output: 48 GPD, 7.6 LPH. Maxm pressure: 50psi, 3.3bar Model: LBC4SB-PTC3-XXX (Intergrated by Beijing Deepblue Petroleum Technology Co., Ltd., China) | Set | 2 |
28. | UPVC manual ball valve DP-OWTP-047 Specification: DN32 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
29. | Magnetic valve DP-OWTP-031 Specification: DN15, 220V,Temp:5°C-80°C, Operating pressure: 0 kg/cm²-10kg/cm² 2W-160-15 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 2 |
30. | UPVC manual ball valve DP-OWTP-050 Specification: DN40 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
31. | De Mineralized water pump DP-OWTP-069 Specification: Pump: Q= 8 m³/h, H=54 mH2O, P=2.2KW 40GDLF8-60 Motor: 415 V, 2.2 KW Y2-90L-2 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 2 |
32. | Rotameter DP-OWTP-052 Specification: Scales: GPM 2-20 and LPM 10-70 Liquid-Sp. Gr. 1.0 Connection: DN32 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
33. | Magnetic Flow Meter DP-OWTP-054 Specification: HR-LDE-40/DN40 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
34. | Magnetic Flow Meter DP-OWTP-070 Specification: HR-LDE-50 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 3 |
35. | Magnetic Flow Meter DP-OWTP-032 Specification: HR-LDE-32 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 3 |
36. | Pressure switch (low position) DP-OWTP-055 Specification: 2-25psi 4NN-K4-N4-B1A SOR Inc. (Integrated by Beijing Deepblue Petroleum Technology Co., Ltd., China) | Nos | 2 |
37. | Pressure switch (high position) DP-OWTP-056 Specification: 35-375psi 5NN-K5-N4-F1A SOR Inc. (Integrated by Beijing Deepblue Petroleum Technology Co., Ltd., China) | Nos | 2 |
38. | Conductivity measurement (outlet) DP-OWTP-058 Specification: Measurement Range: 0-20.00, 200.0, 2000 µS/cm Power Supply: 220VAC or 24VDC Model: DDG-403B Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 2 |
39. | Thermometer DP-OWTP-059 Specification: WSSP-481W Dial Diameter: 100mm Measurement Range: 0 – 1000C Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 5 |
40. | Pressure Transmitter DP-OWTP-060 Specification: 3-30 PSID 101NN-K3-N4-C1A SOR Inc. (Integrated by Beijing Deepblue Petroleum Technology Co., Ltd., China) | Nos | 5 |
41. | AC Motor Drives (3 Phase) DP-OWTP-061 Specification: Input: 3ph, 380-480V,50/60Hz, Output: 3ph,0-480V, 5kVA,5hp, Frequency range: 0.1 to 120Hz Delta Model: VFD9A0MS43ANSAA Delta Electronics, Inc (Integrated by Beijing Deepblue Petroleum Technology Co., Ltd., China) | Nos | 2 |
42. | Back Pressure Check Valve DP-OWTP-063 Specification: RXBF-S32/0.3 Nominal Diameter: 32mm Set Pressure: 01-10 Mpa, Material: S304 Connection Method: Rc1+1/4” Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
B. | Oily Waste Water Separator Unit | | |
43. | Screw Pump with Electric Motor DP-OWTP-001 Specification: Pump:10m³/h, Motor: 3 KW; inlet:50mm, Outlet: 40mm. G35-1 415V, Speed: 960 r/min, Head: 30m Motor Model: Y132S-6 Beijing Deepblue Petroleum Technology Co., Ltd., China HS Code: 3901.10.10 | Set | 3 |
44. | Piston Pump for oily water DP-OWTP-002 Specification: CDZ-1000 Capacity: 1 m3/h Power: 0.55KW, Volt: 380VAC/50Hz Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
45. | Manual gate valve DP-OWTP-003 Specification: Valve Size: DN65 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
46. | Manual gate valve DP-OWTP-004 Specification: Valve Size: DN80 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
47. | Manual gate valve with actuator DP-OWTP-005 Specification: Actuator Model: QS-05S Power Supply: 240VAC, 50Hz Torque: 50 N.m, Time: 30s Valve Specification: DN80 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
48. | Manual gate valve DP-OWTP-006 Specification: Valve Size: DN50 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
49. | Manual gate valve DP-OWTP-007 Specification: Valve Size: DN32 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
50. | Check valve DP-OWTP-008 Specification: Valve Size: DN50 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 3 |
51. | Electrical butterfly valve DP-OWTP-009 Specification: Actuator Model: QS-05S Power Supply: 240VAC, 50Hz Torque: 50 N.m, Time: 30s Valve Specification: DN50 Actuator Manufacturer: Tianjin Tianertong Valve Actuator Co., Ltd., China | Nos | 8 |
52. | Manual three way valve DP-OWTP-010 Specification: Valve Size: DN10 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 5 |
53. | Filter Element DP-OWTP-011 Specification: Each Filter Capacity: 2.5m³/h, Oily Water Separator treated Capacity: 10m³/h (4x2.5m³/h), Filter Dimension- Outer Diameter 400mm, Inner Diameter-90mm, L-1350mm, Filtration accuracy: 5 µm material Beijing Deepblue Petroleum Technology Co., Ltd., China | Set(4pcsperset) | 8 |
54. | Electrical Heater DP-OWTP-012 Specification: GYY-415V/2KW Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 2 |
55. | Oil level Relay DP-OWTP-013 Specification: 61F-GPN-BC (Correct Model) Relay contact (SPST-NO) Rated Voltage: 24VDC OMRON Corporation | Nos | 2 |
56. | Thermometer DP-OWTP-014 Specification: WSSX-481 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 2 |
57. | Safety Valve DP-OWTP-015 Specification: 0-0.6MPa Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 3 |
58. | Oil Concentration Analyzer DP-OWTP-016 Specification: XOC-02 Measurement range: 0-30ppm ± 2 Alarm Point: 15ppm Output: 4~20mA Power: 20KW Supply : 220VAC± 10%, 50 ± 5% Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 3 |
59. | Pressure Gauge DP-OWTP-017 Specification: Y100BF 0-1.0 MPa Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
60. | Vaccum Gauge DP-OWTP-018 Specification: Y-100BF-0.1-0MPa Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
61. | Manual gate valve DP-OWTP-004 Specification: DN80 Beijing Deepblue Petroleum Technology Co., Ltd., China | Nos | 1 |
62. | Electrical Butterfly valve DP-OWTP-005 Specification: Actuator Model: QS-05S Power Supply: 240VAC, 50Hz Torque: 50 N.m, Time: 30s Valve Specification: DN80 Actuator Manufacturer: Tianjin Tianertong Valve Actuator Co., Ltd., China | Nos | 2 |
